KafkaProducer源码 - 核心流程
Kafka 3.9.0
此篇文章参考自 hsfxuebao 博客 kafka源码系列。原文使用的Kafka版本是0.10.2。本文将代码内容更新到了3.9.0，增加了自己的解读，部份内容也做了修改和补充。
Producer发送流程

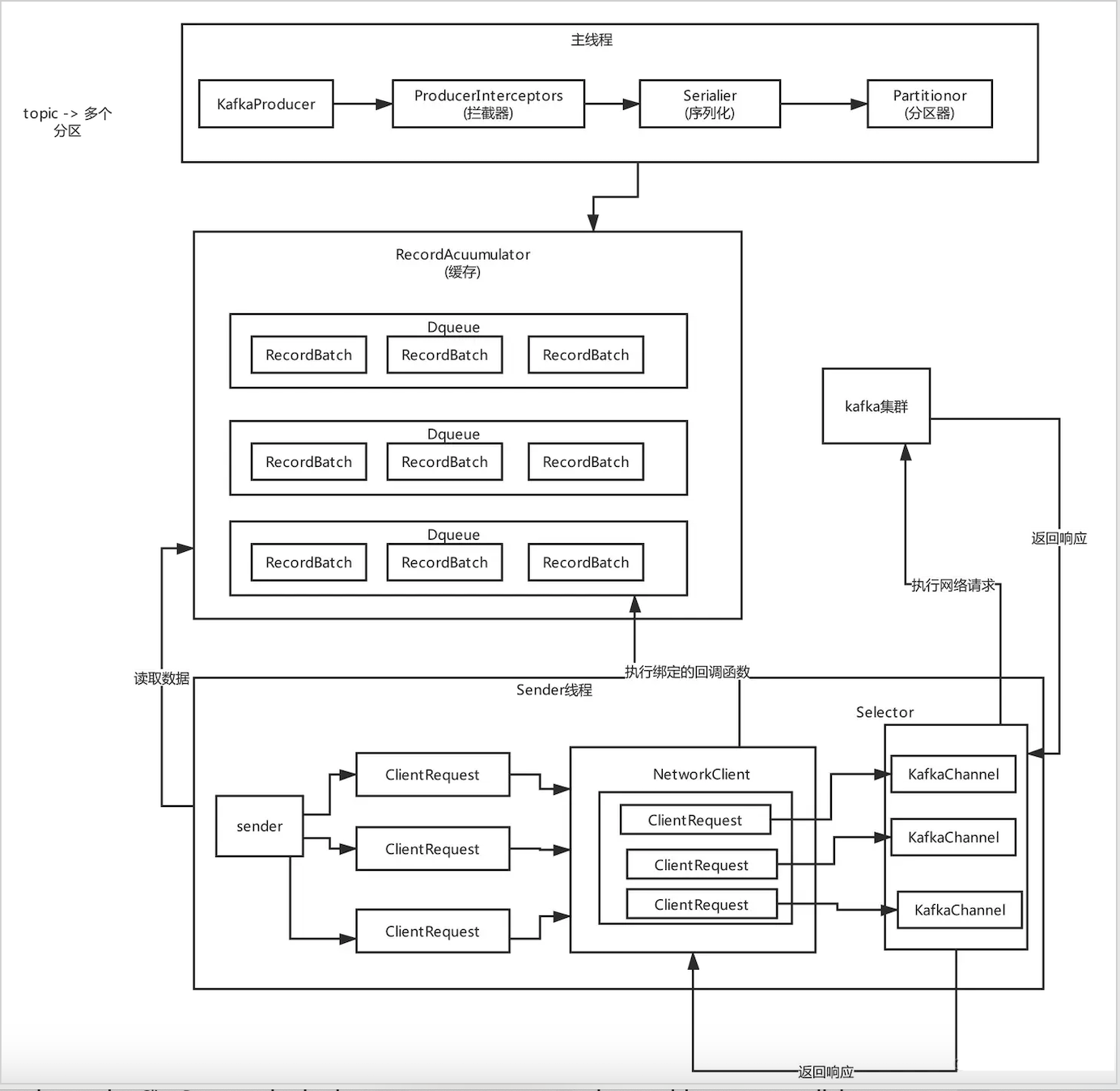

整体流程图
send方法
producer发送数据都是调用 send() 方法。
java
@Override
public Future<RecordMetadata> send(ProducerRecord<K, V> record) {
return send(record, null);
}
@Override
public Future<RecordMetadata> send(ProducerRecord<K, V> record, Callback callback) {
// 使用ProducerInterceptor对消息进行拦截或修改
ProducerRecord<K, V> interceptedRecord = this.interceptors.onSend(record);
return doSend(interceptedRecord, callback);
}数据发送的最终实现还是调用了 Producer 的 doSend() 接口。
doSend方法
java
private Future<RecordMetadata> doSend(ProducerRecord<K, V> record, Callback callback) {
// Append callback takes care of the following:
// - call interceptors and user callback on completion
// - remember partition that is calculated in RecordAccumulator.append
// 为record绑定callback和interceptor函数
AppendCallbacks appendCallbacks = new AppendCallbacks(callback, this.interceptors, record);
try {
throwIfProducerClosed();
// first make sure the metadata for the topic is available
/**
* 同步等待拉取元数据。
* maxBlockTimeMs 最多能等待多久。
*/
long nowMs = time.milliseconds();
ClusterAndWaitTime clusterAndWaitTime;
try {
clusterAndWaitTime = waitOnMetadata(record.topic(), record.partition(), nowMs, maxBlockTimeMs);
} catch (KafkaException e) {
if (metadata.isClosed())
throw new KafkaException("Producer closed while send in progress", e);
throw e;
}
nowMs += clusterAndWaitTime.waitedOnMetadataMs;
long remainingWaitMs = Math.max(0, maxBlockTimeMs - clusterAndWaitTime.waitedOnMetadataMs);
Cluster cluster = clusterAndWaitTime.cluster;
/**
* 对消息的key和value进行序列化。
*/
byte[] serializedKey;
try {
serializedKey = keySerializer.serialize(record.topic(), record.headers(), record.key());
} catch (ClassCastException cce) {
throw new SerializationException("Can't convert key of class " + record.key().getClass().getName() +
" to class " + producerConfig.getClass(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG).getName() +
" specified in key.serializer", cce);
}
byte[] serializedValue;
try {
serializedValue = valueSerializer.serialize(record.topic(), record.headers(), record.value());
} catch (ClassCastException cce) {
throw new SerializationException("Can't convert value of class " + record.value().getClass().getName() +
" to class " + producerConfig.getClass(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG).getName() +
" specified in value.serializer", cce);
}
/**
* 根据partitioner选择消息应该发送的分区。
* 计算完之后有可能为 RecordMetadata.UNKNOWN_PARTITION，意味着RecordAccumulator会用内置的逻辑来决定分区。
* （可能会考虑 broker load，the amount of data produced to each partition, etc）
*
* 因为前面我们已经获取到了元数据
* 这儿我们就可以根据元数据的信息
* 计算一下，我们应该要把这个数据发送到哪个分区上面。
*/
int partition = partition(record, serializedKey, serializedValue, cluster);
setReadOnly(record.headers());
Header[] headers = record.headers().toArray();
/**
* 计算消息记录的总大小
*/
int serializedSize = AbstractRecords.estimateSizeInBytesUpperBound(apiVersions.maxUsableProduceMagic(),
compression.type(), serializedKey, serializedValue, headers);
/**
* 确认一下消息的大小是否超过了最大值。
* KafkaProdcuer初始化的时候，指定了一个参数，代表的是Producer这儿最大能发送的是一条消息能有多大
* 默认最大是1M，我们一般都会去修改它。
*/
ensureValidRecordSize(serializedSize);
long timestamp = record.timestamp() == null ? nowMs : record.timestamp();
// A custom partitioner may take advantage on the onNewBatch callback.
boolean abortOnNewBatch = partitioner != null;
// Append the record to the accumulator. Note, that the actual partition may be
// calculated there and can be accessed via appendCallbacks.topicPartition.
/**
* 把消息放入accumulator
* 然后accumulator把消息封装成为一个批次一个批次的去发送。
* 有可能在这一步计算好实际的pratition
*/
RecordAccumulator.RecordAppendResult result = accumulator.append(record.topic(), partition, timestamp, serializedKey,
serializedValue, headers, appendCallbacks, remainingWaitMs, abortOnNewBatch, nowMs, cluster);
assert appendCallbacks.getPartition() != RecordMetadata.UNKNOWN_PARTITION;
/**
* partitioner可以实现onNewBatch的方法，当一个新的batch被创建的时候会call
* 可以为新的batch重新计算分区
*/
if (result.abortForNewBatch) {
int prevPartition = partition;
onNewBatch(record.topic(), cluster, prevPartition);
partition = partition(record, serializedKey, serializedValue, cluster);
if (log.isTraceEnabled()) {
log.trace("Retrying append due to new batch creation for topic {} partition {}. The old partition was {}", record.topic(), partition, prevPartition);
}
result = accumulator.append(record.topic(), partition, timestamp, serializedKey,
serializedValue, headers, appendCallbacks, remainingWaitMs, false, nowMs, cluster);
}
// Add the partition to the transaction (if in progress) after it has been successfully
// appended to the accumulator. We cannot do it before because the partition may be
// unknown or the initially selected partition may be changed when the batch is closed
// (as indicated by `abortForNewBatch`). Note that the `Sender` will refuse to dequeue
// batches from the accumulator until they have been added to the transaction.
// 添加partition到事务
if (transactionManager != null) {
transactionManager.maybeAddPartition(appendCallbacks.topicPartition());
}
if (result.batchIsFull || result.newBatchCreated) {
log.trace("Waking up the sender since topic {} partition {} is either full or getting a new batch", record.topic(), appendCallbacks.getPartition());
/**
batch已满或者新batch建立，唤醒sender线程发送数据
*/
this.sender.wakeup();
}
return result.future;
// handling exceptions and record the errors;
// for API exceptions return them in the future,
// for other exceptions throw directly
} catch (ApiException e) {
log.debug("Exception occurred during message send:", e);
// callback错误回调
if (callback != null) {
TopicPartition tp = appendCallbacks.topicPartition();
RecordMetadata nullMetadata = new RecordMetadata(tp, -1, -1, RecordBatch.NO_TIMESTAMP, -1, -1);
callback.onCompletion(nullMetadata, e);
}
this.errors.record();
// interceptor错误回调
this.interceptors.onSendError(record, appendCallbacks.topicPartition(), e);
if (transactionManager != null) {
// transaction错误回调
transactionManager.maybeTransitionToErrorState(e);
}
return new FutureFailure(e);
} catch (InterruptedException e) {
this.errors.record();
this.interceptors.onSendError(record, appendCallbacks.topicPartition(), e);
throw new InterruptException(e);
} catch (KafkaException e) {
this.errors.record();
this.interceptors.onSendError(record, appendCallbacks.topicPartition(), e);
throw e;
} catch (Exception e) {
// we notify interceptor about all exceptions, since onSend is called before anything else in this method
this.interceptors.onSendError(record, appendCallbacks.topicPartition(), e);
throw e;
}
}doSend() 大致流程分为如下的几个步骤：
- 为record绑定callback和interceptor
- 确认数据要发送到的 topic 的 metadata 是可用的（如果该 partition 的 leader 存在则是可用的，如果开启权限时，client 有相应的权限），如果没有 topic 的 metadata 信息，就需要获取相应的 metadata；
- 序列化 record 的 key 和 value；
- 获取该 record 要发送到的 partition（可以指定，也可以根据算法计算）；
- 确认一下消息的大小是否超过最大值；
- 向 accumulator 中追加 record 数据，数据会先进行缓存。过程中计算要发送的partition；
- 如果追加完数据后，对应的 RecordBatch 已经达到了 batch.size 的大小（或者batch 的剩余空间不足以添加下一条 Record），则唤醒
sender线程发送数据。
数据发送主要分为上面的七个步骤，下面对着几部分进行消息分析。
发送过程详解
同步阻塞获取metadata信息
如果你要往一个topic里发送消息，必须是得有这个topic的元数据的，你必须要知道这个topic有哪些分区，然后根据Partitioner组件去选择一个分区，然后知道这个分区对应的leader所在的broker，才能跟那个broker建立连接，发送消息
调用同步阻塞的方法，去等待先得获取到那个topic对应的元数据，如果此时客户端还没缓存那个topic的元数据，那么一定会发送网络请求到broker去拉取那个topic的元数据过来，但是下一次就可以直接根据缓存好的元数据来发送了。
对消息的key和value序列化
发送消息的key和value可以是各种各样的类型，比如说String、Double、Boolean，或者是自定义的对象，但是如果要发送消息到broker，必须对这个key和value进行序列化，把那些类型的数据转换成byte[]字节数组的形式。kafka内部提供很多Serializer, 都实现了Serializer接口。
如果这些序列化不能满足我们的需求，可以自定义序列化和反序列化。
获取分区 partition 值
partition方法会计算partition值，分为四种情况
java
private int partition(ProducerRecord<K, V> record, byte[] serializedKey, byte[] serializedValue, Cluster cluster) {
if (record.partition() != null)
return record.partition();
if (partitioner != null) {
int customPartition = partitioner.partition(
record.topic(), record.key(), serializedKey, record.value(), serializedValue, cluster);
if (customPartition < 0) {
throw new IllegalArgumentException(String.format(
"The partitioner generated an invalid partition number: %d. Partition number should always be non-negative.", customPartition));
}
return customPartition;
}
if (serializedKey != null && !partitionerIgnoreKeys) {
// hash the keyBytes to choose a partition
return BuiltInPartitioner.partitionForKey(serializedKey, cluster.partitionsForTopic(record.topic()).size());
} else {
return RecordMetadata.UNKNOWN_PARTITION;
}
}- record里指明 partition 的情况下，直接将指明的值直接作为 partiton 值；
- 如果有配置了自定义的partitioner，则使用自定义partitioner的计算结果。
- 如果有key并且partitionerIgnoreKeys为false，则使用内置的partitioner根据hash key计算partition值。
- 如果上述条件都不满足，则返回RecordMetadata.UNKNOWN_PARTITION。表示任何partition都可以使用。后续可能会根据RecordAccumulator里的内置算法计算出一个partition。
默认的BuiltInPartitoner使用key来计算partition。对key使用 murmur2 hash算法，murmur2是一种高效率低碰撞的Hash算法。最后对总partitions数取余。
java
/*
* Default hashing function to choose a partition from the serialized key bytes
*/
public static int partitionForKey(final byte[] serializedKey, final int numPartitions) {
return Utils.toPositive(Utils.murmur2(serializedKey)) % numPartitions;
}校验消息大小是否超过最大值
比较消息与 maxRequestSize 和 totalMemorySize 的大小。
java
private void ensureValidRecordSize(int size) {
if (size > maxRequestSize)
throw new RecordTooLargeException("The message is " + size +
" bytes when serialized which is larger than " + maxRequestSize + ", which is the value of the " +
ProducerConfig.MAX_REQUEST_SIZE_CONFIG + " configuration.");
if (size > totalMemorySize)
throw new RecordTooLargeException("The message is " + size +
" bytes when serialized which is larger than the total memory buffer you have configured with the " +
ProducerConfig.BUFFER_MEMORY_CONFIG +
" configuration.");

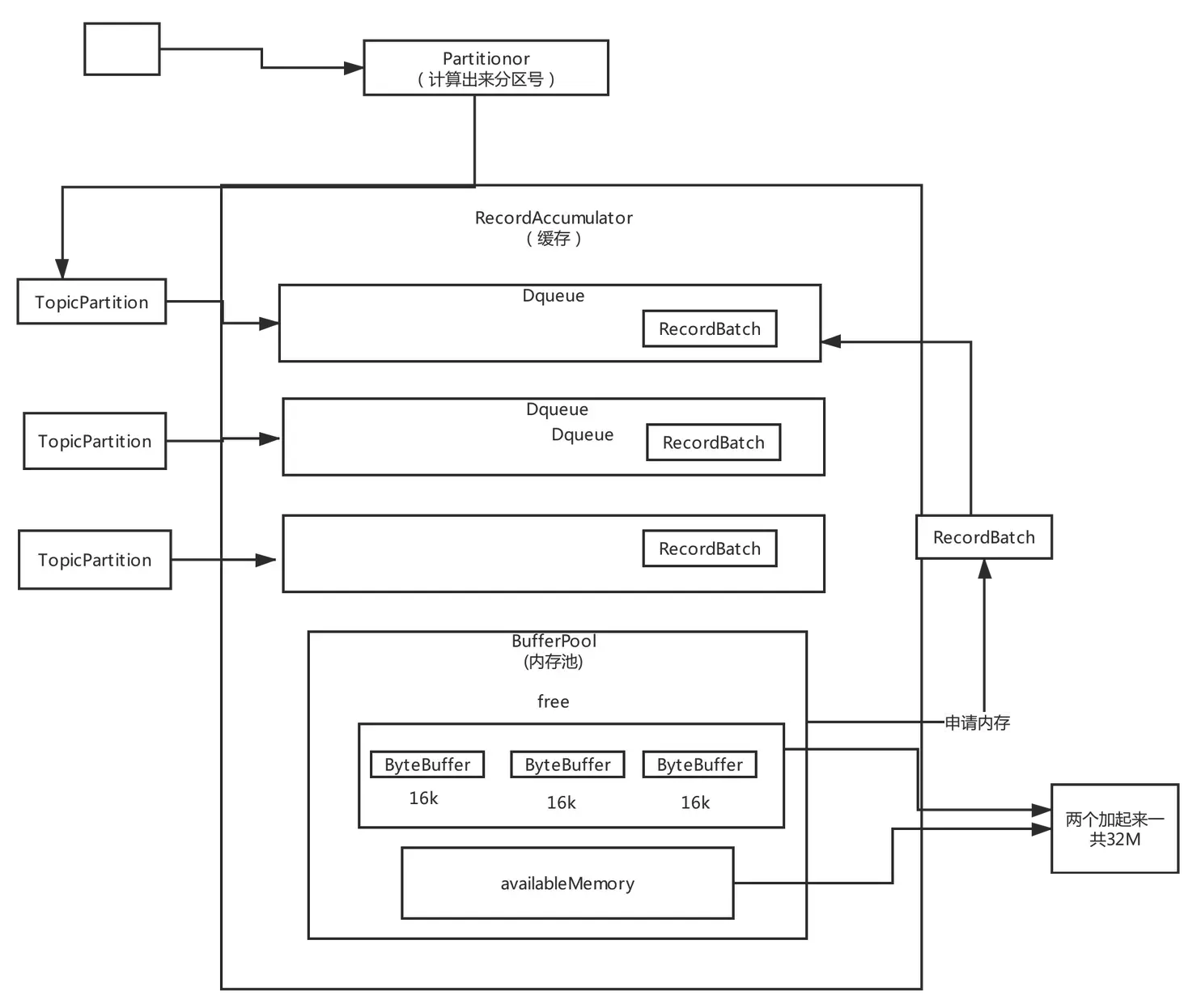

}向Accumulator写数据
java
public RecordAppendResult append(String topic,
int partition,
long timestamp,
byte[] key,
byte[] value,
Header[] headers,
AppendCallbacks callbacks,
long maxTimeToBlock,
boolean abortOnNewBatch,
long nowMs,
Cluster cluster) throws InterruptedException {
// topicInfoMap维护了topic的元信息
TopicInfo topicInfo = topicInfoMap.computeIfAbsent(topic, k -> new TopicInfo(createBuiltInPartitioner(logContext, k, batchSize)));
// We keep track of the number of appending thread to make sure we do not miss batches in
// abortIncompleteBatches().
// 统计正在向RecordAccumulator中追加数据的线程数
appendsInProgress.incrementAndGet();
ByteBuffer buffer = null;
if (headers == null) headers = Record.EMPTY_HEADERS;
try {
// Loop to retry in case we encounter partitioner's race conditions.
// 循环重试来避免partitioner的race conditions
while (true) {
// If the message doesn't have any partition affinity, so we pick a partition based on the broker
// availability and performance. Note, that here we peek current partition before we hold the
// deque lock, so we'll need to make sure that it's not changed while we were waiting for the
// deque lock.
// 如果message消息没有指定任何partition，就根据availability和performance选一个partition。
// 如果指定了partition就使用它
final BuiltInPartitioner.StickyPartitionInfo partitionInfo;
final int effectivePartition;
if (partition == RecordMetadata.UNKNOWN_PARTITION) {
partitionInfo = topicInfo.builtInPartitioner.peekCurrentPartitionInfo(cluster);
effectivePartition = partitionInfo.partition();
} else {
partitionInfo = null;
effectivePartition = partition;
}
// 将最终的partition分区告诉callback函数
setPartition(callbacks, effectivePartition);
// check if we have an in-progress batch
/**
* 先根据分区找到应该插入到哪个队列里面。
* 如果有已经存在的队列，那么我们就使用存在队列
* 如果队列不存在，那么我们新创建一个队列
*/
Deque<ProducerBatch> dq = topicInfo.batches.computeIfAbsent(effectivePartition, k -> new ArrayDeque<>());
synchronized (dq) {
// After taking the lock, validate that the partition hasn't changed and retry.
// 检查partition是否有变化，如果有就重试retry
if (partitionChanged(topic, topicInfo, partitionInfo, dq, nowMs, cluster))
continue;
/**
* 尝试往队列里面的批次里添加数据
*
* 一开始添加数据肯定是失败的，我们目前只是有了队列
* 数据是需要存储在批次对象里面（这个批次对象是需要分配内存的）
* 我们目前还没有分配内存，所以如果按场景驱动的方式，
* 代码第一次运行到这儿其实是不成功的。
*/
RecordAppendResult appendResult = tryAppend(timestamp, key, value, headers, callbacks, dq, nowMs);
if (appendResult != null) {
// If queue has incomplete batches we disable switch (see comments in updatePartitionInfo).
// 如果append成功，将append result更新至partitionInfo，并返回
boolean enableSwitch = allBatchesFull(dq);
topicInfo.builtInPartitioner.updatePartitionInfo(partitionInfo, appendResult.appendedBytes, cluster, enableSwitch);
return appendResult;
}
}
// we don't have an in-progress record batch try to allocate a new batch
if (abortOnNewBatch) {
// Return a result that will cause another call to append.
return new RecordAppendResult(null, false, false, true, 0);
}
// 分配内存
if (buffer == null) {
byte maxUsableMagic = apiVersions.maxUsableProduceMagic();
/**
计算一个batch的大小
在消息的大小和批次的大小之间取一个最大值，用这个值作为当前这个批次的大小。
当一条消息的大小超过一个batch的大小时，那么这个batch就只有这一条消息了
*/
int size = Math.max(this.batchSize, AbstractRecords.estimateSizeInBytesUpperBound(maxUsableMagic, compression.type(), key, value, headers));
log.trace("Allocating a new {} byte message buffer for topic {} partition {} with remaining timeout {}ms", size, topic, effectivePartition, maxTimeToBlock);
// This call may block if we exhausted buffer space.
// 根据批次的大小去分配内存
buffer = free.allocate(size, maxTimeToBlock);
// Update the current time in case the buffer allocation blocked above.
// NOTE: getting time may be expensive, so calling it under a lock
// should be avoided.
nowMs = time.milliseconds();
}
synchronized (dq) {
// After taking the lock, validate that the partition hasn't changed and retry.
if (partitionChanged(topic, topicInfo, partitionInfo, dq, nowMs, cluster))
continue;
/**
* 再次尝试往队列里面的批次里添加数据
* 这次是用的appendNewBatch方法，内部会先调用tryAppend方法
* 如果失败，则创建一个新的batch放在dq末尾
*/
RecordAppendResult appendResult = appendNewBatch(topic, effectivePartition, dq, timestamp, key, value, headers, callbacks, buffer, nowMs);
// Set buffer to null, so that deallocate doesn't return it back to free pool, since it's used in the batch.
if (appendResult.newBatchCreated)
buffer = null;
// If queue has incomplete batches we disable switch (see comments in updatePartitionInfo).
boolean enableSwitch = allBatchesFull(dq);
topicInfo.builtInPartitioner.updatePartitionInfo(partitionInfo, appendResult.appendedBytes, cluster, enableSwitch);
return appendResult;
}
}
} finally {
free.deallocate(buffer);
appendsInProgress.decrementAndGet();
}
}TopicInfo里面的batches是一个线程安全的 CopyOnWriteMap 维护了每个partition的batch队列。
java
/**
* Per topic info.
*/
private static class TopicInfo {
public final ConcurrentMap<Integer /*partition*/, Deque<ProducerBatch>> batches = new CopyOnWriteMap<>();
public final BuiltInPartitioner builtInPartitioner;
public TopicInfo(BuiltInPartitioner builtInPartitioner) {
this.builtInPartitioner = builtInPartitioner;
}
}accumulator写数据使用了内存池 BufferPool 的设计，能够循环使用内存，减少GC次数。流程图为
唤醒Sender线程
sender线程才是真正发送数据的线程。当我们在RecordAccumulator里面把数据以分批的形式存在对应partition的deque队列里之后，sender线程会处理这些batch数据并真正的发送出去。
小结
从Producer 的 send 方法可以学到非常多的东西：
- Producer初始化没有去拉取集群的元数据，而是在后面根据你发送消息时候的需要，要给哪个topic发送消息，再去拉取那个topic对应的元数据，这就是懒加载的设计思想，按需加载思想
- 一个高并发、高吞吐、高性能的消息系统的客户端的设计，他的核心流程是如何来搭建和设计的，可扩展，通过拦截器的模式预留一些扩展点给其他人来扩展，在消息发送之前或者发送之后，都可以进行自定义的扩展
- 设计一个通用框架的时候，必须得有一个序列化的过程，因为key和value可能是各种各样的类型，但是必须要保证把key和value都转换成通用的byte[]字节数组的格式，才可以来进行跟broker的通信
- 基于一个独立封装的组件来进行分区的选择和路由，可以用默认的，也可以用自定义的分区器，留下给用户自己扩展的空间
- 对消息的大小，是否超出请求的最大大小，是否会填满 内存缓冲导致内存溢出，对一些核心的请求数据必然要进行严格的检查
- 异步发送请求，通过先进入内存缓冲，同时设置一个callback回调函数的思路，在发送完成之后来回调你的函数通知你消息发送的结果，异步运行的后台线程配合起来使用，基于异步线程来发送消息
